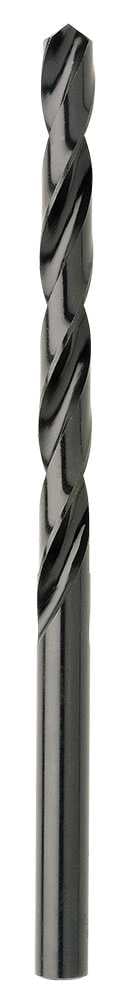

3/8" HSS Long Series Drill
| Part Number: | 2500-3/8 |
| Brand: | Bordo |
| Barcode: | 9326518053118 |
| Pack Qty: | 1 |
| Feed per revolution mm: | 0.19 |
| Spindle Speed Aluminium/Brass RPM: | 2041 |
| Spindle Speed Cast Iron RPM: | 803 |
| Spindle Speed Free Cutting Steel RPM: | 1439 |
| Spindle Speed Malleable Iron RPM: | 903 |
| Spindle Speed Med. Carbon Steel RPM: | 1004 |
| Spindle Speed Stainless Steel RPM: | 401 |
| Spindle Speed Tool Steel RPM: | 602 |
| Spindle Speed Wood/Plastic RPM: | 3044 |
| Diameter (inch): | 3/8 |
| Diameter (mm): | 9.52 |
| Flute Length (mm): | 121 |
| Overall Length (mm): | 184 |
About this item:
- 3/8" HSS Long Series Drill
- ANSI B94-11
- 118° chisel point with 30° helix.
- Chisel point is suitable for general purpose drilling.
- Black Finish Twist Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating.
- This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding. The result is increased tool life.
- Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.
Alternative Products
 |  |  |  |  | |
|---|---|---|---|---|---|
| Selected Product | Alternative | Alternative | Alternative | Alternative | |
| Part Number: | 2500-3/8 | 2505-3/8 | 2505-3/8S | 2500-3/8S | 2502-3/8 |

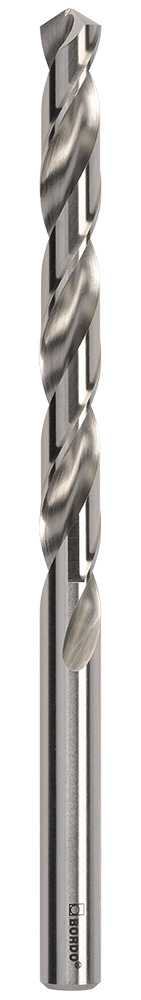

| Title: | 3/8" HSS Long Series Drill | 3/8" HSS Long Series Drill | 3/8" HSS Long Series Drill | 3/8" HSS Long Series Drill - Clam | 3/8" Long Reach (Aircraft) Drill |
| Barcode | 9326518053118 | 9326518173489 | 9326518172932 | 9326518019282 | 9326518126867 |
| Brand | Bordo | Bordo | Bordo | Bordo | Bordo |
| Diameter (inch) | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| Diameter (mm) | 9.52 | 9.52 | 9.52 | 9.52 | 9.52 |
| Flute Length (mm) | 121 | 121 | 121 | 121 | 114 |
| OAL (mm) | 305 | ||||
| Overall Length (mm) | 184 | 184 | 184 | 184 | |
| Pack Qty | 1 | 10 | 1 | 1 | 1 |
| Pack Type | Twist Pack | Clam Shell | Clam Shell | ||
| Packaging | Hang Sell | ||||
| Feed per revolution mm | 0.19 | 0.19 | 0.19 | 0.19 | |
| Spindle Speed Tool Steel RPM | 602 | 602 | 602 | 602 | |
| Spindle Speed Wood/Plastic RPM | 3044 | 3044 | 3044 | 3044 | |
| Spindle Speed Aluminium/Brass RPM | 2041 | 2041 | 2041 | 2041 | |
| Spindle Speed Cast Iron RPM | 803 | 803 | 803 | 803 | |
| Spindle Speed Free Cutting Steel RPM | 1439 | 1439 | 1439 | 1439 | |
| Spindle Speed Malleable Iron RPM | 903 | 903 | 903 | 903 | |
| Spindle Speed Med. Carbon Steel RPM | 1004 | 1004 | 1004 | 1004 | |
| Spindle Speed Stainless Steel RPM | 401 | 401 | 401 | 401 | |
| Surface Finish | Black | ||||
| Material | HSS |
