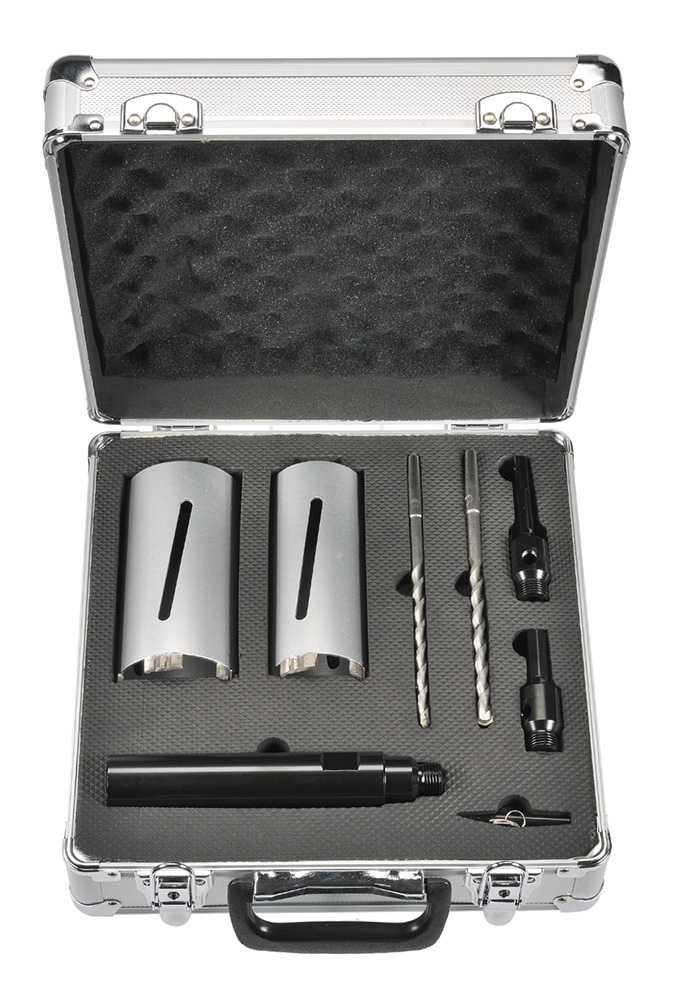

Diamond Core Drill Kit Turbo for Brick 65mm, 80mm

Part Number:CBTBKIT2
Brand:Dymaxion
Barcode:9333716004071

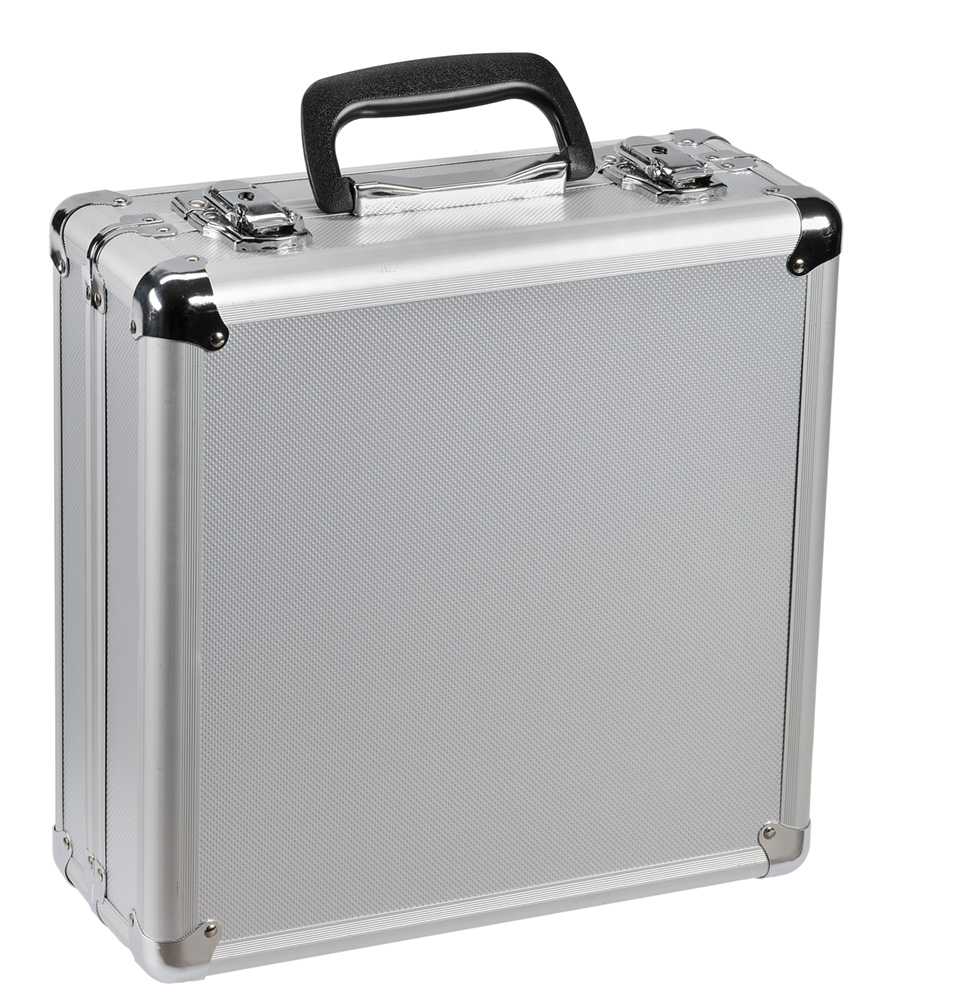

Packaging:Aluminium Case.
Ideal For:Dry cutting in brick.
Note:Wall ties can damage diamond segments. Check for obstructions and remove.
Set Description:Includes 200mm extension for double brick walls, SDS Plus and 12mm Hex Mandrels, plus 2 pilot drills.

About this item:
  • Diamond Turbo Core Bits are designed for coring holes in brick without the use of water.
  • The range includes diameters that are popular with plumber's, electrician's and air conditioning installers.
  • There is great variation in brick hardness and density - do not use excessive force or the core bit will overheat.
  • To achive optimum cutting performance and maximum core drill life use a slow drill speed and low drill pressure.
  • Variable speed drills work best since the correct speed can be selected.
  • Diamond core drills only drill out a portion of the resulting hole so they drill much faster than conventional blunt nose drills.
  • The life of any type of diamond drill depends upon the hardness, abrasiveness and thickness of the material being drilled and the specific drilling techniques used.
  • Using diamond core drills in hard materials is not difficult, however drilling the hole takes time.
  • You should consider that they aren't "drilling" a hole - they are "grinding" a hole.
  • DO NOT USE HAMMER ACTION.
Components:
Part NumberTitleQuantity
CBTB65-160 Diamond Core Drill Turbo for Brick 65mm x 160mm 1
CBTB80-160 Diamond Core Drill Turbo for Brick 80mm x 160mm 1
ABB200 Adaptor Extension 200mm 1/2" BSP to 1/2" BSP Thread 1
AHB85 Adaptor HEX 85mm 1/2" BSP Thread 1
ASPB85 Adaptor SDS Plus 85mm 1/2" BSP Thread 1
ABD200 Pilot Drill for 1/2" BSP Arbor 10mm x 200mm 2
