12-24 UNC HSSE-PM Spiral Flute Tap
| Part Number: | 6632-12GSF |
| Brand: | Bordo |
| Sub Brand: | High Performance |
| Barcode: | 9326518213611 |
| Diameter (inch): | 12G |
| Pitch (tpi): | 24 |
| Tap Material: | HSSE-PM |
| Tap Coating: | TiCN |
| Through Hole: | ✓ |
| Blind Hole: | ✓ |
| Tap Standard: | DIN 371 |

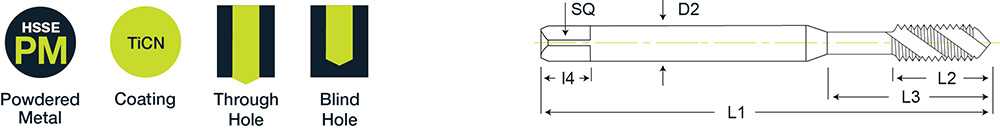

| L1 (mm): | 80 |
| L2 (mm): | 10 |
| L3 (mm): | 29 |
| D2 (mm): | 6.0 |
| SQ (mm): | 4.9 |
| I4 (mm): | 8 |
| Tap Drill (mm): | 4.5 |
| UNC: | 12-24 UNC |
About this item:
- High Performance Tapping

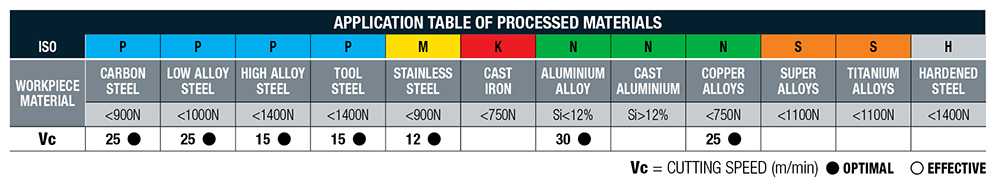

- Suitable for most materials
- Powdered metal material gives greater tool life
