All Products ➞ Bordo High Performance ➞ Spade Drills ➞ 00 & 05 Series 13.0 to 17.5mm Drills and Inserts ➞ 00 & 05 Series Straight Shank Drills Straight Flute

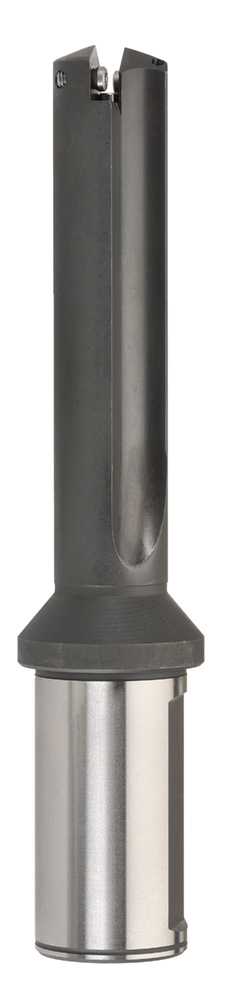

Bordo Spade Drill 05 Series Straight Shank Straight Flute 15.50-17.50mm F20 Holder
| Part Number: | 6516-05SF20 |
| Brand: | Bordo |
| Sub Brand: | High Performance |
| Barcode: | 9326518193258 |
| Series: | 05 |
| Flute Type: | Straight |
| Shank Type: | Straight with one flat |

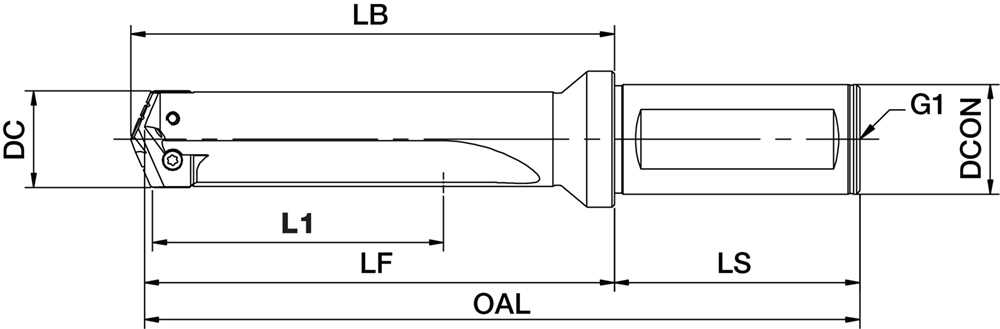

| DC (mm): | 15.50-17.50mm |
| L1 (mm): | 35 |
| LF (mm): | 64 |
| OAL (mm): | 114 |
| DCON (mm): | 20 |
| LS (mm): | 50 |
| Suits insert range (mm): | 15.50-17.50mm |
| Torx® screws: | 6518-046 |
| Torx® key: | 6519-017 |
| Inclusions: | Torx Key and Screws |
| Torx® size: | T8 |
