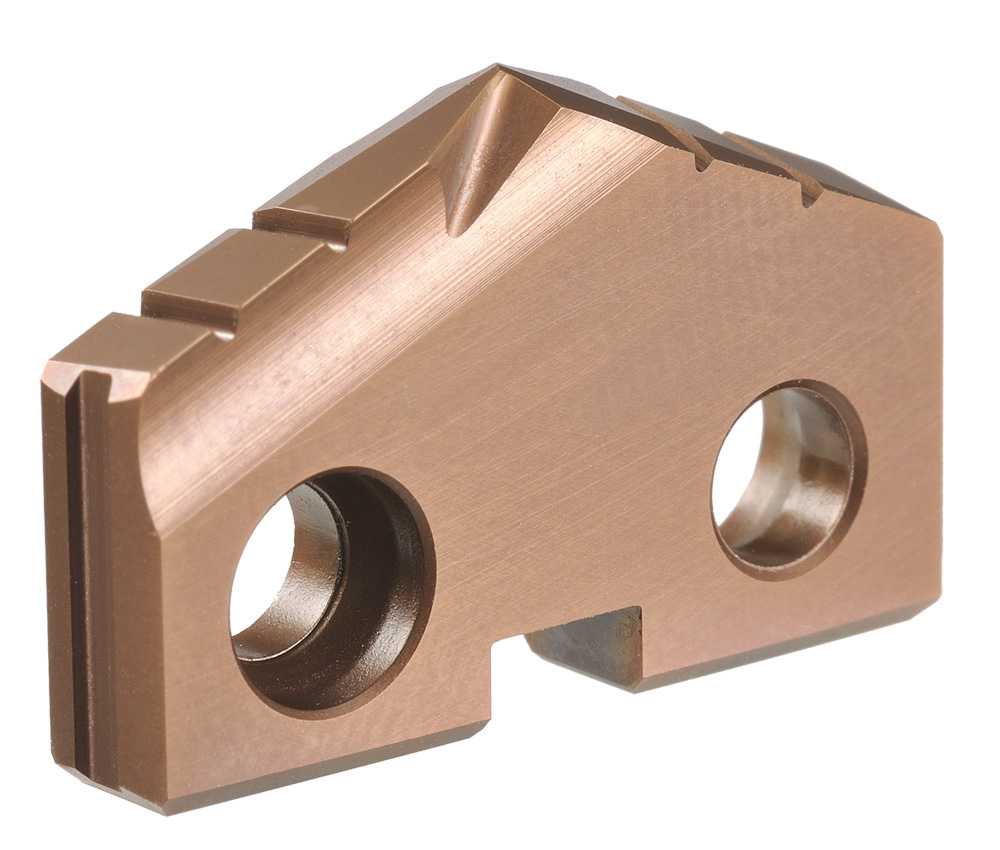

Bordo Tungsten Carbide 10.00mm Spade Drill Insert for Cast Iron
| Part Number: | 6513-10.00K |
| Brand: | Bordo |
| Sub Brand: | High Performance |
| Barcode: | 9326518191537 |
| Series: | Y0 |

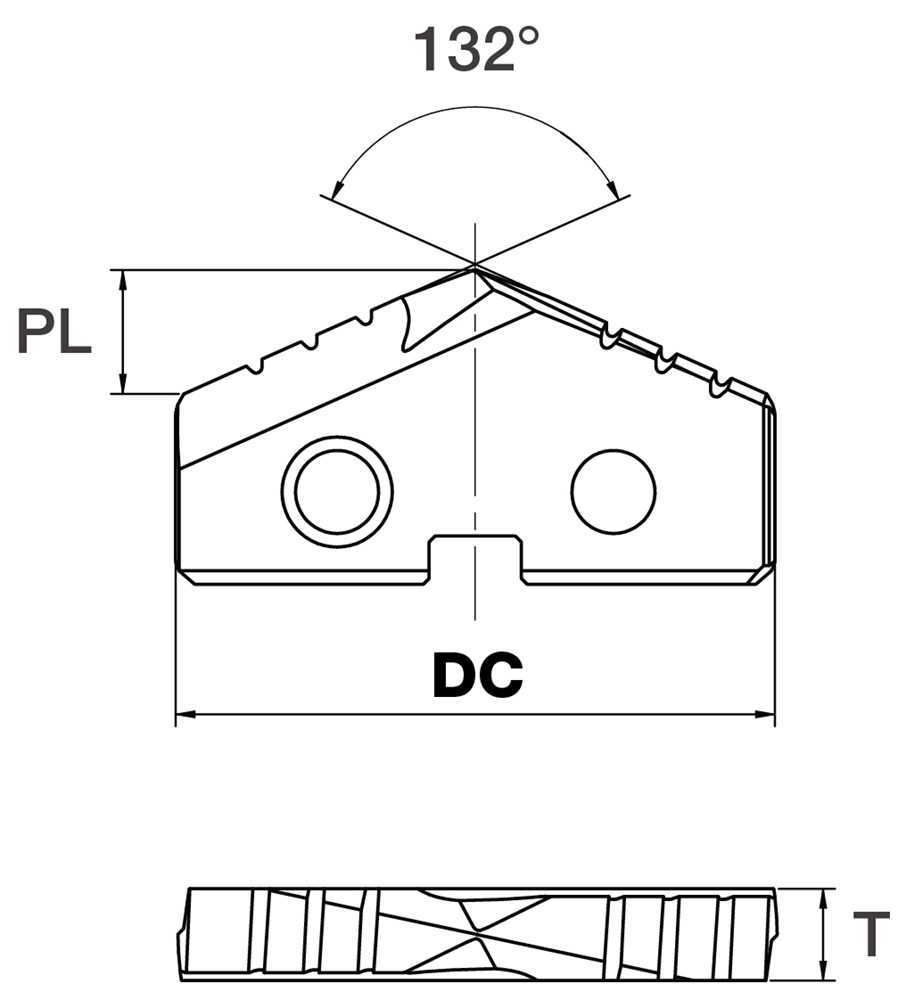

| DC (mm): | 10.00 |
| PL (mm): | 2.3 |
| T (mm): | 2.38 |
| Angle (degrees): | 132 |
| Material: | Tungsten Carbide |
| Coating: | AlCrSiN |
| Suits drill series: | Y0 |
| Torx® screws: | 6518-047 |
| Torx® key: | 6519-018 |

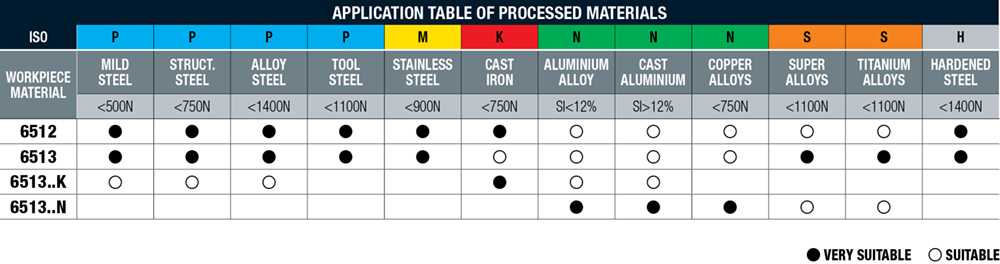

| For machining: | Cast Iron |
| Torx® size: | T7 |
