All Products ➞ Bordo High Performance ➞ Tungsten Carbide Endmills & Slot Drills ➞ VariMill 4 Flute Variable Helix Corner Radius

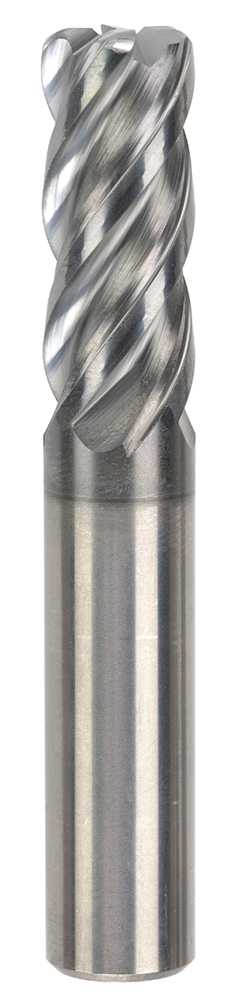

20mm X 1.0 Cnr Rad Vari VHM AlCrSiN 4Fl End Mill
| Part Number: | 6563-20.00R1.0 |
| Brand: | Bordo |
| Sub Brand: | High Performance |
| Barcode: | 9326518195566 |

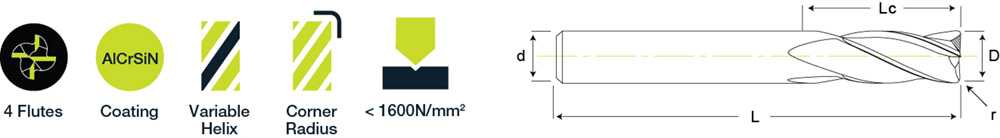

| Diameter D (mm) : | 20.0 |
| Flute (Lc) mm: | 45 |
| fz (mm/tooth): | 0.095 |
| OAL (L) mm: | 100 |
| Shank (d) mm: | 20 |
| Cnr Rad (r) mm: | 1.0 |
About this item:
- Solid Tungsten Carbide.

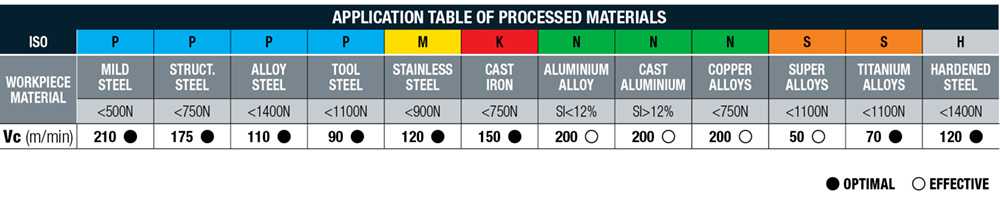

- High performance machining, suitable for most materials up to 1600N/mm2.
- Unequal helix angle and unequal spacing of teeth greatly reduces vibration.
- AlCrSiN coating with high oxidation resistance and high adhesion.
