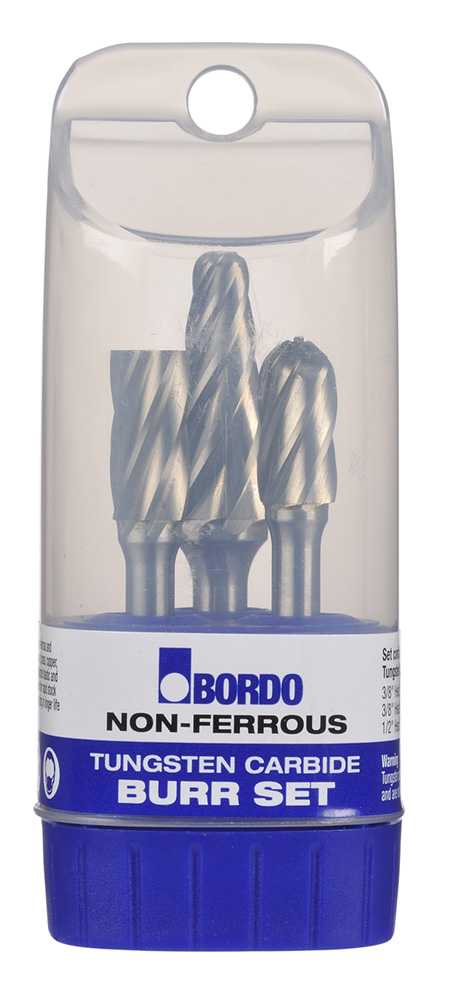

3 Pce S3 Non Ferrous Cut Burr Set
Part Number: | 6401-S3 |
Brand: | Bordo |
Barcode: | 9326518145646 |
Shank (inch): | 1/4" |
Number of Pieces: | 3 |
Surface Finish: | Bright |
Material: | Tungsten Carbide |
About this item:
- 3 Piece S3 Non Ferrous Cut Burr Set
- 3 Piece Non-Ferrous Burr Set
- Non-Ferrous Cut Burrs are designed for rapid stock removal with minimum chip loading resulting in longer life and reduced clogging.
- Non-Ferrous Cut Burrs are for use on non-ferrous and non-metallic materials such as aluminium, brass, copper, bronze, coarse plastic, hard rubber, reinforced plastic and fibreglass composite.
- Harder materials require slower running speeds.
- Smaller burrs require faster running speeds.
- Long shank burrs require slower speeds for safety reasons.
- Apply constant movement and light pressure when using the burr.
- Running below the optimum speed will cause chipping.
- Running above optimum speed will cause premature tooth wear.
- Allowing the burr to become too hot may cause the braze to soften, and cause the head to become detached from the shank.
- Using tools and collets which have become worn will cause chipping.
- Do not sink the burr for more than one third of its periphery.
Components:
Part Number | Title | Quantity | |
---|
6401-95293 |
3/8" SA-3 Cylindrical 1/4" Shank Burr Non Ferrous |
1 |
|
6401-95294 |
3/8" SC-3 Cylindrical Ball Nose 1/4" Shank Burr Non Ferrous |
1 |
|
6401-95304 |
1/2" SL-4 14 Deg. Included Angle 1/4" Shank Burr Non Ferrous |
1 |
|
