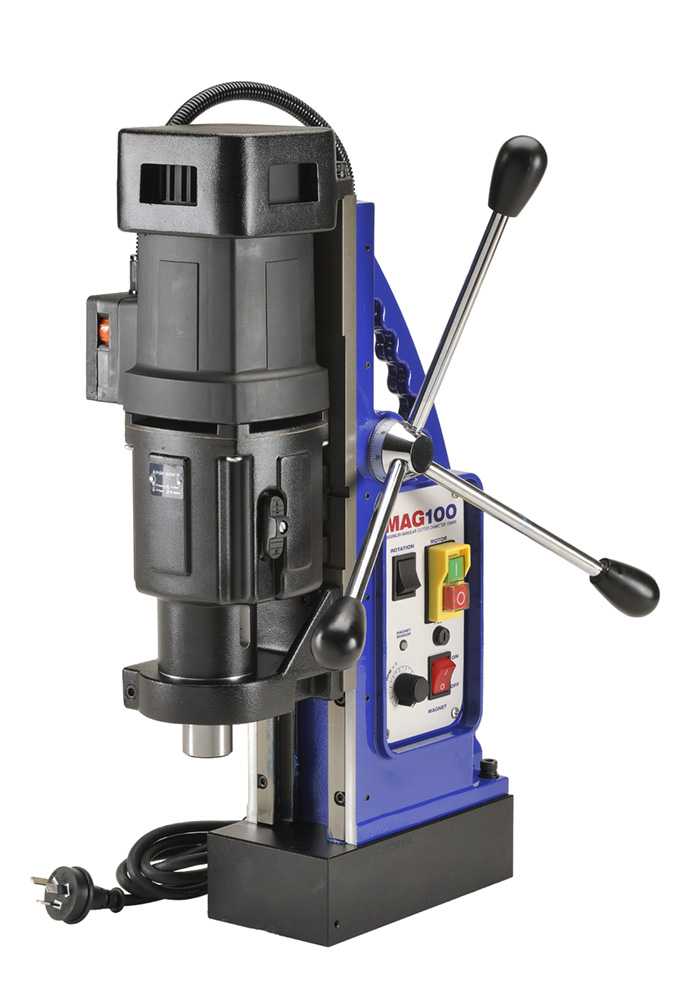

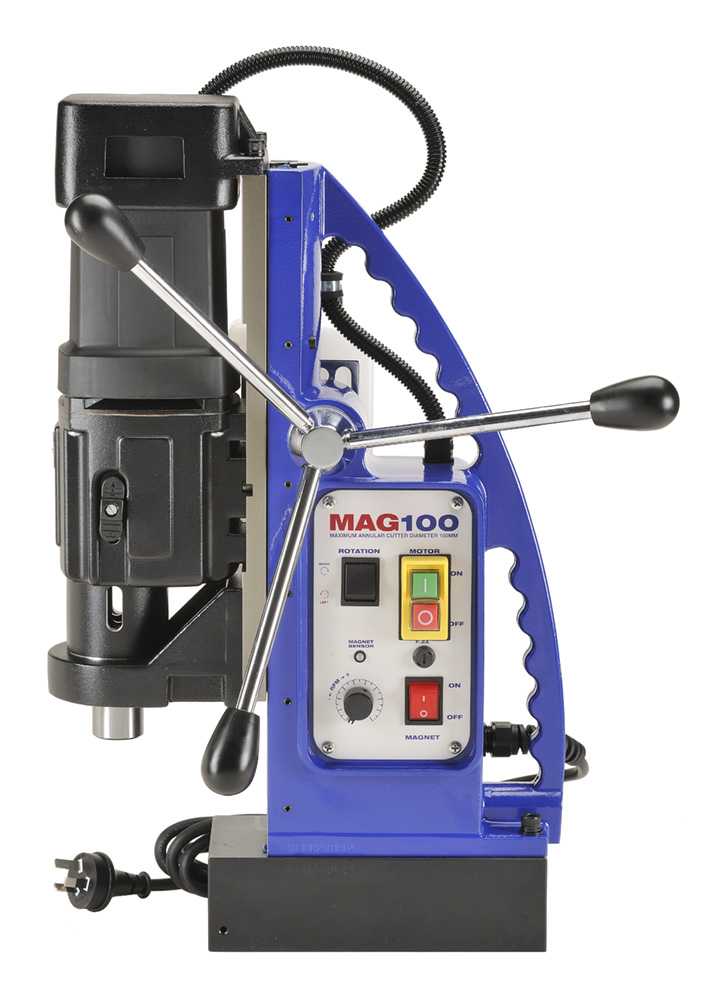

Magnetic Base Drill Corded for up to 100mm Diameter Cutters
| Part Number: | 7400-MAG100 |
| Brand: | Bordo |
| Barcode: | 9326518189381 |
| Annular Cutter Dia. mm: | 12-100 |
| Twist Drill Dia. mm: | 1-31.75 |
| Threading: | M3-M30 |
| Countersink Dia. mm: | 10-105 |
| Length mm: | 340 |
| Width mm: | 310 |
| Height mm: | 510-710 |
| Stroke mm: | 260 |
| Weight kg: | 28 |
| Magnet Force kg: | 2500 |
| Motor Power W: | 1800 |
| Speed - loaded RPM: | 85 / 152 / 270 / 480 |
| Spindle (Weldon) mm: | 19.05 |
| Spindle MTS #: | 3 |
| Gearbox Speeds: | 4 |
| Power Source: | 220-240V 50/60Hz |
| Weight (kg): | 34.5 |
| Height (mm): | 420 |
| Width (mm): | 740 |
| Depth (mm): | 220 |
About this item:
- Complies with The Australian Standard AS/NZS 4417.1 and AS/NZS 4417 for electrical safety. In-scope electrical equipment must not be sold unless the item is marked with the RCM in compliance with AS/NZS 4417.1 & 2 and the EESS.
- The heavyweight champion in our magnetic drilling range.
- The MAG100 powerhouse drills perfect holes up to 100mm in record time.
- Four speed gearbox.
- Super strong powerful magnet.
- High efficiency motor.
- Threading capable.
