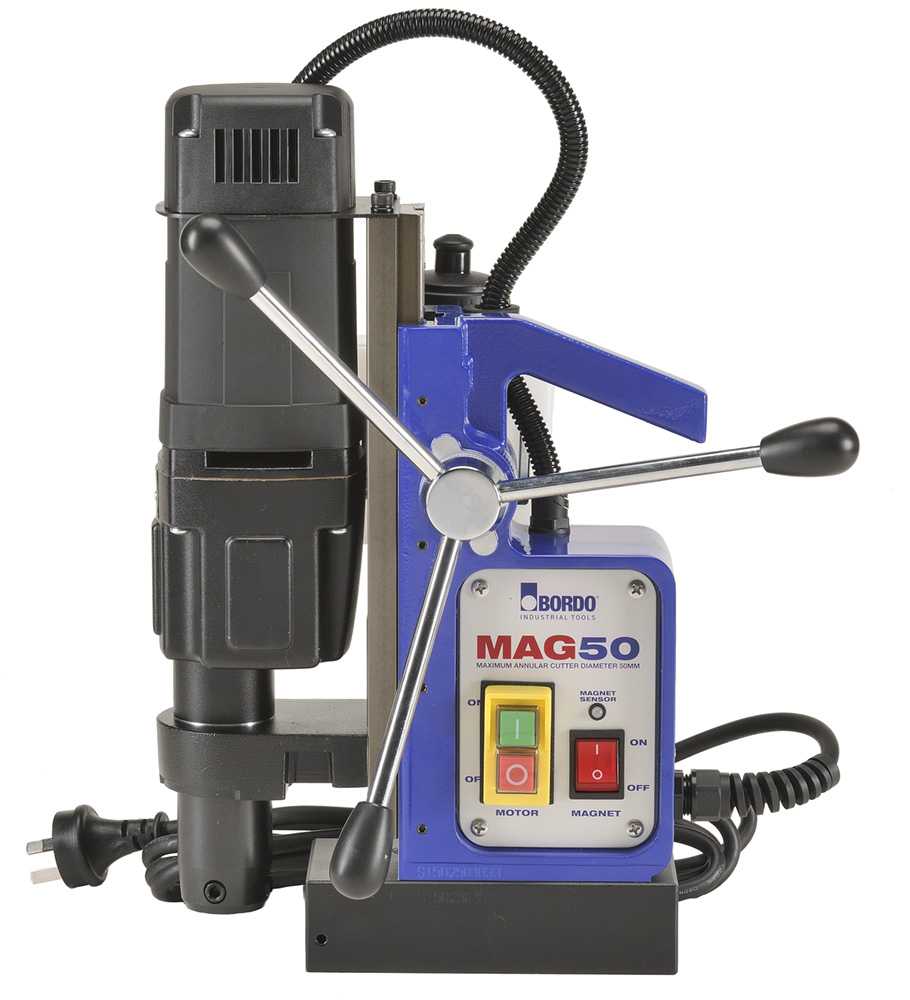

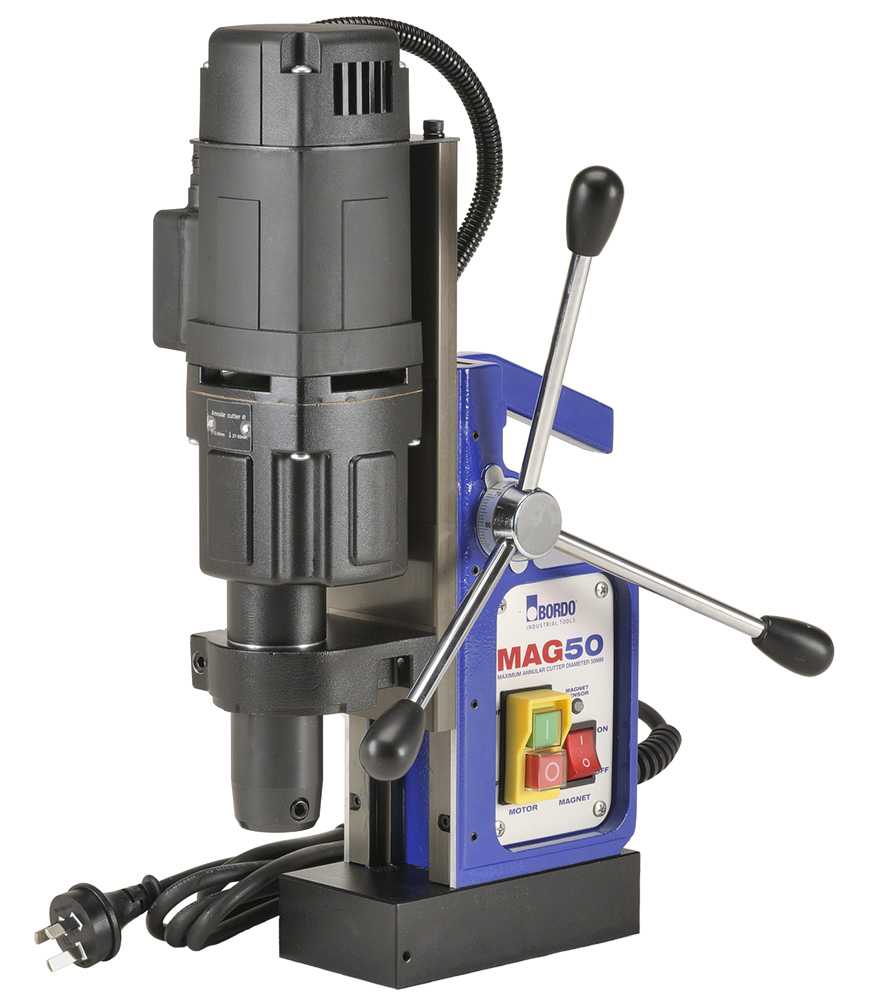

Magnetic Base Drill Corded for up to 50mm Diameter Cutters
| Part Number: | 7400-MAG50 |
| Brand: | Bordo |
| Barcode: | 9326518189374 |
| Annular Cutter Dia. mm: | 12-50 |
| Twist Drill Dia. mm: | 1-20 |
| Threading: | - |
| Countersink Dia. mm: | 10-55 |
| Length mm: | 320 |
| Width mm: | 200 |
| Height mm: | 378-533 |
| Stroke mm: | 155 |
| Weight kg: | 13.5 |
| Magnet Force kg: | 1600 |
| Motor Power W: | 1200 |
| Speed - loaded RPM: | 235 / 425 |
| Spindle (Weldon) mm: | 19.05 |
| Spindle MTS #: | - |
| Gearbox Speeds: | 2 |
| Power Source: | 220-240V 50/60Hz |
About this item:
- Complies with The Australian Standard AS/NZS 4417.1 and AS/NZS 4417 for electrical safety. In-scope electrical equipment must not be sold unless the item is marked with the RCM in compliance with AS/NZS 4417.1 & 2 and the EESS.
- The MAG50 gives you the flexibility to drill and countersink up to 50mm.
- The wider range of cutter diameters and extra stroke means this machine sits in the production sweet spot.
- Wider reach, bigger diameter holes.
- Powerful magnet.
- Two speed gearbox for heavy duty cutting.
