All Products ➞ Goliath Threading Tools ➞ Taps Hand & Machine ➞ HSS Pipe Taps and Reamers ➞ NPSF Dryseal

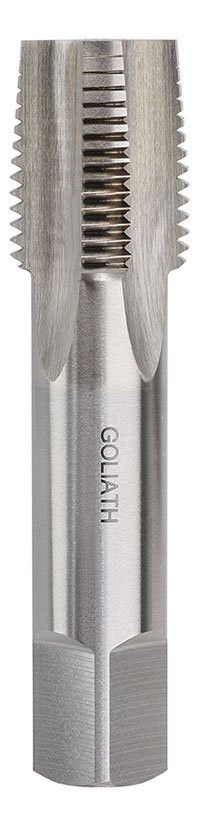

1/2" x 14 NPSF Taper HSS Tap - Goliath
| Part Number: | C84ZKCA4 |
| Brand: | Goliath |
| Barcode: | 9349009015686 |
| Pack Qty: | 1 |
| Diameter (inch): | 1/2 |
| Drill Diameter (mm): | 18.5 |
| Lead: | Taper |
| Overall Length (mm): | 79 |
| Pitch (mm): | 14 |
| Tolerance: | BS949-1969 |
| # Flutes: | 4 |
| Standard: | BS949-1969 |
| Thread Form: | NPSF Dryseal |
About this item:
- 1/2" x 14 NPSF Taper HSS Tap - Goliath
- HSS Bright Finish NPSF Hand and Machine Taper Tap.
- Pipe taps are much shorter than a similar size of regular hand tap, but the design features are the same.
- Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
- National Pipe Straight Fuel (Dryseal) is used for internal threads and an NPTF external thread can be screwed into it to provide both a satisfactory mechanical connection and hydraulic seal.
- A combination of a parallel and tapered thread would not appear to be ideal but it is widely used.
- Many quick disconnect couplers for example have the NPSF thread and are recommended by the manufacturer for use with NPT and NPTF.
- Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
- Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
