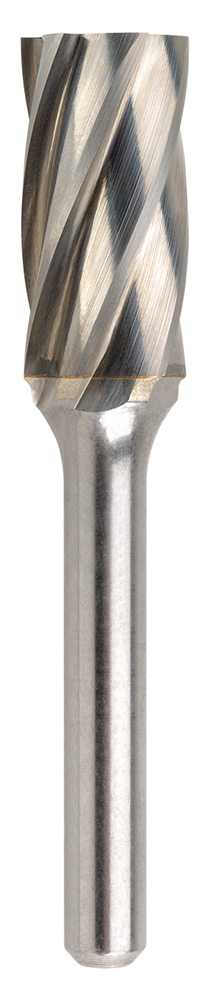

1/4" SA-1NF Cylindrical Burr - Non Ferrous - Saber
Part Number: | 8020-SA1NF |
Brand: | Saber |
Barcode: | 9326518160748 |
Pack Qty: | 1 |
Flute Length (inch): | 3/4 |
Head Diameter (inch): | 1/4 |
Overall Length (inch): | 2 |
Shank (inch): | 1/4 |
Style: | SA-1NF |
About this item:
- 1/4" SA-1NF Cylindrical Burr - Non Ferrous - Saber
- SA-1NF Non-ferrous cut tungsten carbide burr.
- Non-Ferrous Cut Burrs are designed for rapid stock removal with minimum chip loading resulting in longer life and reduced clogging.
- Non-Ferrous Cut Burrs are for use on non-ferrous and non-metallic materials such as aluminium, brass, copper, bronze, coarse plastic, hard rubber, reinforced plastic and fibreglass composite.
- Harder materials require slower running speeds.
- Smaller burrs require faster running speeds.
- Long shank burrs require slower speeds for safety reasons.
- Apply constant movement and light pressure when using the burr.
- Running below the optimum speed will cause chipping.
- Running above optimum speed will cause premature tooth wear.
- Allowing the burr to become too hot may cause the braze to soften, and cause the head to become detached from the shank.
- Using tools and collets which have become worn will cause chipping.
- Do not sink the burr for more than one third of its periphery.
Alternative Products
![]() | ![]() | |
---|---|---|
Selected Product | Alternative | |
Part Number: | 8020-SA1NF | 6401-95289 |
Title: | 1/4" SA-1NF Cylindrical Burr - Non Ferrous - Saber | 1/4" SA-1 Cylindrical 1/4" Shank Burr Non Ferrous |
Barcode | 9326518160748 | 9326518010777 |
Brand | Saber | Bordo |
Flute Length (inch) | 3/4 | 3/4 |
Head Diameter (inch) | 1/4 | 1/4 |
Overall Length (inch) | 2 | 2 |
Shank (inch) | 1/4 | 1/4 |
Pack Qty | 1 | 1 |
Style | SA-1NF | SA-1NF |
