All Products ➞ Saber ➞ Countersinks ➞ HSS-Co5 (Cobalt) Triple Flute Round Shank

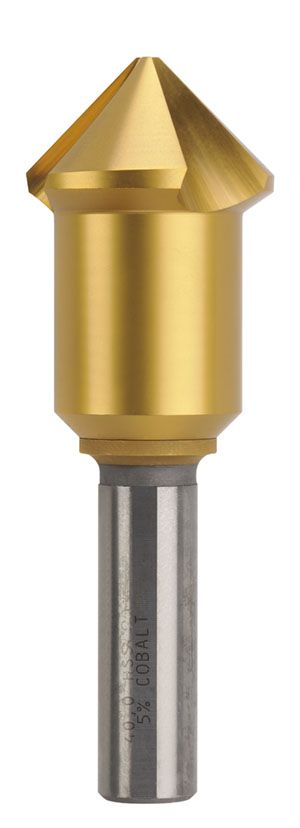

Saber 40mm 90 Degree TiN Coated HSS-Co5 (Cobalt) Triple Flute Countersink
| Part Number: | 8034-40 |
| Brand: | Saber |
| Barcode: | 9326518136705 |
| Pack Qty: | 1 |
| Capacity MIN - MAX (mm): | 6.0 - 40.0 |
| Diameter (mm): | 40 |
| Overall Length (mm): | 80 |
| Shank (mm): | 12 |
About this item:
- Saber 40mm 90 Degree TiN Coated HSS-Co5 (Cobalt) Triple Flute Countersink
- Saber 40.00mm Triple Flute Countersink
- For countersinking and deburring in a wide range of materials including ferrous and non-ferrous metals
- The three fluted countersink is self centering with wide flutes and is used to provide a heavy chamfer in the entrance to a drilled hole.
- This may be required to allow the correct seating for a countersunk head screw or to provide the lead in for a second machining operation such as tapping.
- Use on medium to hard materials.
- Resharpenable.
- HSS-Co5 (Cobalt) countersinks are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
- Bronze Finish (gold oxide) surface treatment. The metallic brown coloured low temperature temper treatment is normally only used on cobalt tools for identification purposes.
- Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
- The coating higher speed and feed rates can be achieved and tool life is greatly increased.
- The TiN coating is achieved by Physical Vapour Deposition (PVD).
