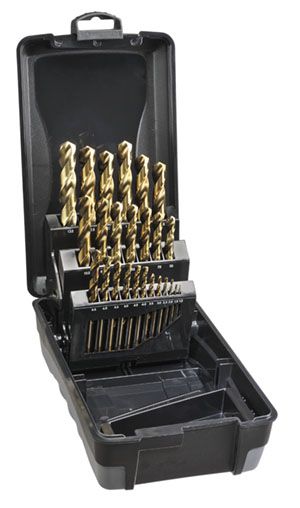

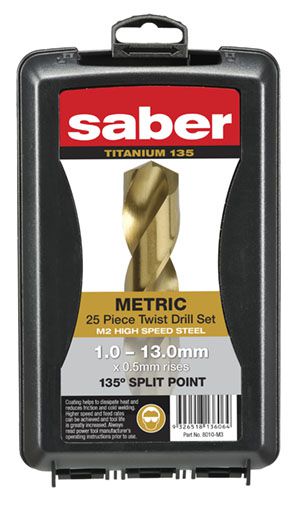

Saber Metric 25 Piece TiN Coated M2-HSS Jobber Set
| Part Number: | 8010-M3 |
| Brand: | Saber |
| Barcode: | 9326518136064 |
| Drill Qty: | 25 |
| Description: | 1.0-13.0mm x 0.5mm rises |
Components:
| Part Number | Quantity | |
|---|
| 8010-1.00 | 1 | |
| 8010-1.50 | 1 | |
| 8010-2.00 | 1 | |
| 8010-2.50 | 1 | |
| 8010-3.00 | 1 | |
| 8010-3.50 | 1 | |
| 8010-4.00 | 1 | |
| 8010-4.50 | 1 | |
| 8010-5.00 | 1 | |
| 8010-5.50 | 1 | |
| 8010-6.00 | 1 | |
| 8010-6.50 | 1 | |
| 8010-7.00 | 1 | |
| 8010-7.50 | 1 | |
| 8010-8.00 | 1 | |
| 8010-8.50 | 1 | |
| 8010-9.00 | 1 | |
| 8010-9.50 | 1 | |
| 8010-10.00 | 1 | |
| 8010-10.50 | 1 | |
| 8010-11.00 | 1 | |
| 8010-11.50 | 1 | |
| 8010-12.00 | 1 | |
| 8010-12.50 | 1 | |
| 8010-13.00 | 1 | |
About this item:
- Saber Metric 25 Piece TiN Coated M2-HSS Twist Set
- Saber Metric 25 Piece TiN Coated M2-HSS Twist Set 1.0 - 13.0mm x 0.5mm rises
- DIN338
- 135° Split Point (crankshaft point).
- Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
- The 135° point should be used to cut harder steel materials especially in deep hole applications.
- In these situations it will produce thicker chips minimising work hardening of the cavity.
- Faster penetration reduces abrasion and friction along the cutting edges.
- Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
- The coating higher speed and feed rates can be achieved and tool life is greatly increased.
- The TiN coating is achieved by Physical Vapour Deposition (PVD).
- As with all surface coated tools, performance will deteriorate after resharpening.
