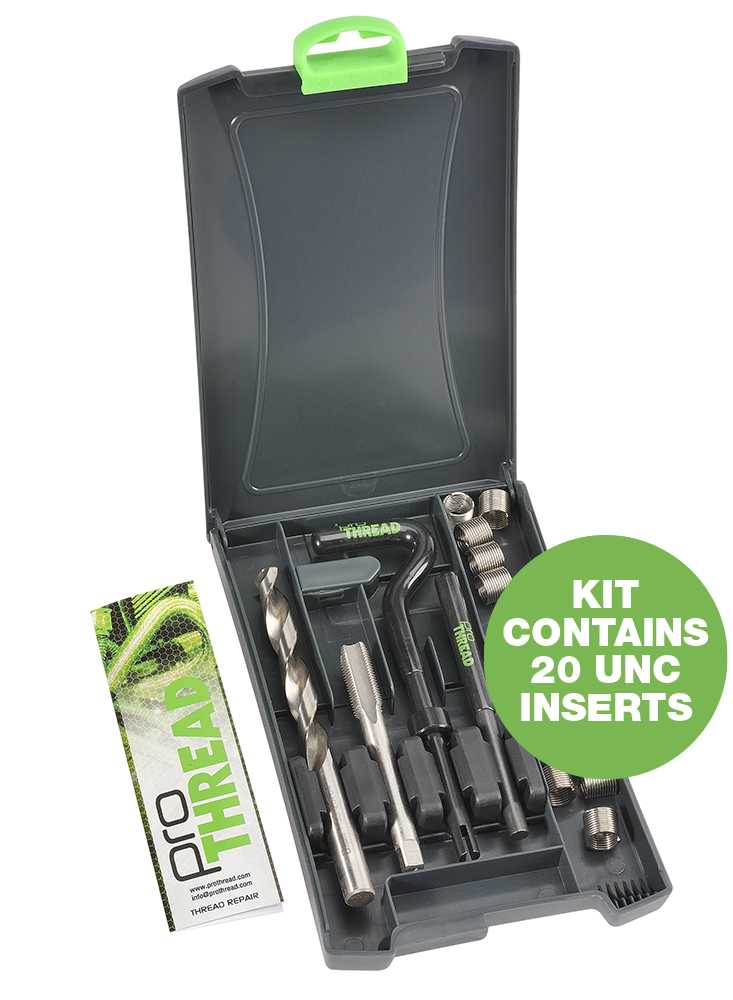

8G x 32 x 1.5D UNC Free Running Thread Repair Kit

Part Number:3597-832K
Brand:ProThread
Barcode:9326518117605
Insert Qty:20
Diameter (inch):8G
Installed Length "D":1.5D
Installed Length (inch):0.250
Pitch (tpi):32
TPI:32
Installation Tool Part no.:3500-HIT6-GB
STI Tap Part no.:3597-832I
Tang Break Tool Part no.:3500-TB6-GB

About this item:
  • 8G x 32 x 1.5D UNC Free Running Thread Repair Kit
  • ProThread Wire Thread Inserts are used to repair damaged or worn out threads, ProThread Wire Thread Inserts can also be used to create new stronger threads in original equipment.
  • They provide a permanent, corrosion and wear resistant internal thread which is usually stronger than the original parent material thread.
  • ProThread wire thread inserts are manufactured from precision profiled diamond shaped stainless steel wire and formed into a helical spiral.
  • They provide high strength internal threads that resist the effects of temperature and corrosion.
  • Their unique design ensures superior threads whose compound performance cannot be reproduced by any other single fastening method.
  • They are much lighter and less expensive than any other equivalent type of thread insert and because of their compact size they can generally be incorporated into existing designs where no previous provision has been made.
Components:
Part NumberTitleQuantity
3597-832X246 8G x 32 UNC Stainless Steel Pro Thread Wire Inserts 20
3597-832I 8G x 32 Chrome STI Intermediate Tap 1
3500-HIT6-GB HIT6 ProThread Hand Installation Tool 1
3500-TB6-GB ProThread hand tang break tool - TB6 1
2007-4.40 4.4mm Bright Finish HSS Jobber Drill 1
